9 Inch European Band Saw | Way Train Band Sawing Machine

H 240 W 310

Double miter cutting (R60˚ L45˚)
Hydraulic vise clamping
Mobile coolant tray is convenient for catchment during the angle cutting

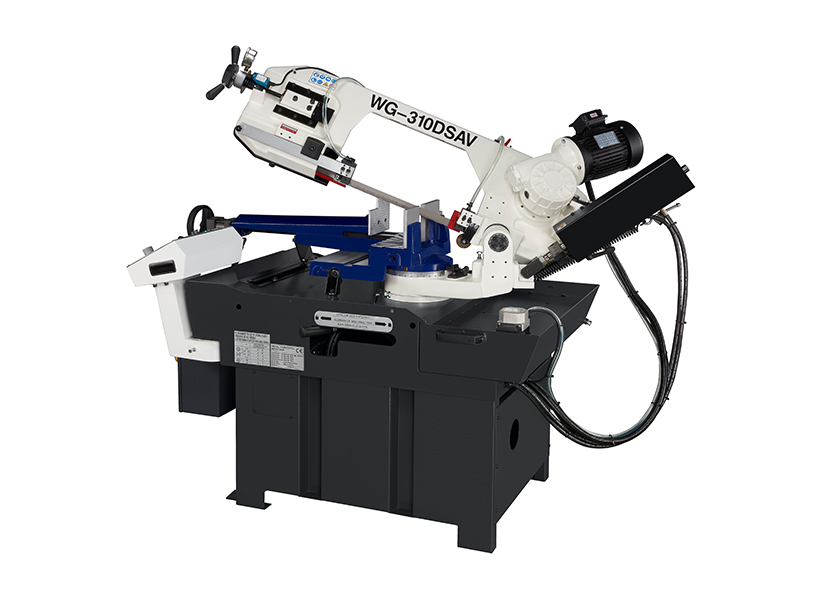

Inverter controls variable blade speed (DSAV)

Specifications

Capacity 90° (H x W)	240 mm 235 mm 165 x 310 mm	Capacity 45° (H x W)	195 mm 185 mm 130 x 195 mm
Capacity 60° (H x W)	120 mm 85 mm 90 x 120 mm	Capacity 45°(L) (H x W)	165 mm 140 mm 60 x 195 mm
Blade Size	27 x 0.9 x 2725 mm	Blade Speed 2 Speeds (DSA)	50HZ 4P 72 m/min ;8P 36 m/min
Blade Speed Inverter (DSAV)	20 ~ 85 mpm	Blade Motor	1.5 HP (1.1 kw)
Hydraulic Motor	1 / 2 HP (0.38kw)	Coolant Motor	32 W
Container Loads	9 units / 20';18 units / 40'	Packing Size	1835 x 762 x 1650 mm
N.W./G.W.	445 kg / 495 kg

Accessories (optional)
