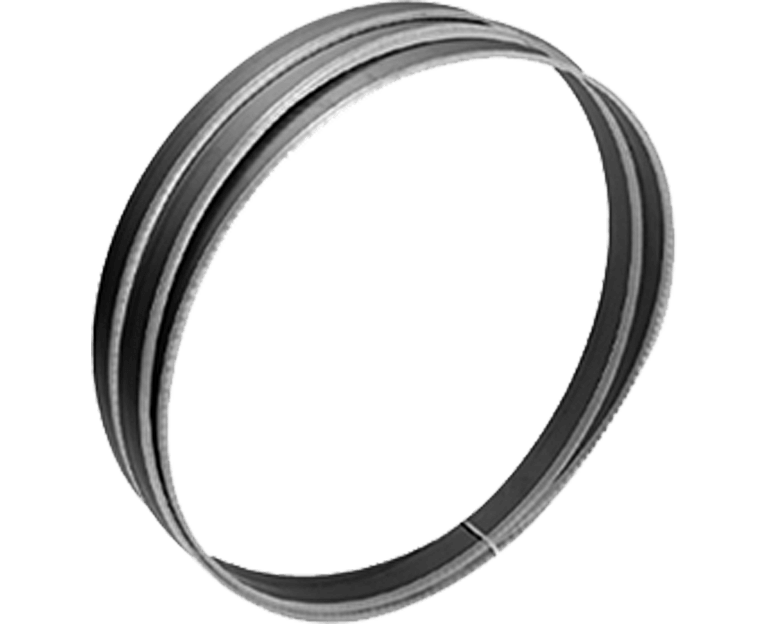

Bi-Metal Band Saw Blades
Band Saw Blade
- Bi-metal band saw blades are widely used in cutting various materials. Matching with suitable blades can effectively reduce blade breakage, and reduce vibration and noise at the cutting process for extending the life of the blade.
1. Blade Tooth for Solid Material
1.1 Constant Tooth
Diameter of solid material
1.2 Variable Tooth
Diameter of solid material
Specifications

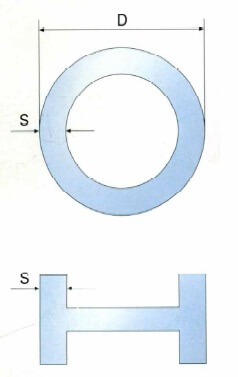

| D (mm) S (mm) |
20 | 40 | 60 | 80 | 100 | 150 | 200 | 300 | 500 |
|---|---|---|---|---|---|---|---|---|---|
| Tooth pitch (tpi) | |||||||||
| 2 | 14 | 14 | 14 | 14 | 10/14 | 10/14 | 10/14 | 10/14 | 8/12 |
| 3 | 14 | 10/14 | 10/14 | 8/12 | 8/12 | 8/12 | 6/10 | 6/10 | 6/10 |
| 4 | 14 | 10/14 | 10/14 | 8/12 | 8/12 | 6/10 | 6/10 | 5/8 | 4/6 |
| 5 | 14 | 10/14 | 10/14 | 8/12 | 6/10 | 6/10 | 5/8 | 4/6 | 4/6 |
| 6 | 14 | 10/14 | 8/12 | 8/12 | 6/10 | 5/8 | 5/8 | 4/6 | 4/6 |
| 8 | 14 | 8/12 | 6/10 | 6/10 | 6/10 | 5/8 | 5/8 | 4/6 | 4/6 |
| 10 | 6/10 | 6/10 | 5/8 | 5/8 | 4/6 | 4/6 | 4/6 | 3/4 | |
| 12 | 6/10 | 5/8 | 4/6 | 4/6 | 4/6 | 4/6 | 3/4 | 3/4 | |
| 15 | 4/6 | 4/6 | 3/4 | 3/4 | 3/4 | 2/3 | |||
| 20 | 4/6 | 4/6 | 3/4 | 3/4 | 3/4 | 2/3 | |||
| 30 | 3/4 | 3/4 | 3/4 | 2/3 | 2/3 | 2/3 | |||
| 50 | 2/3 | 2/3 | 2/3 | 1.4/2 | |||||
| 75 | 2/3 | 1.4/2 | 1.4/2 | ||||||
| 100 | 1.4/2 | 0.75/1.25 | |||||||
| 150 | 0.75/1.25 | ||||||||
