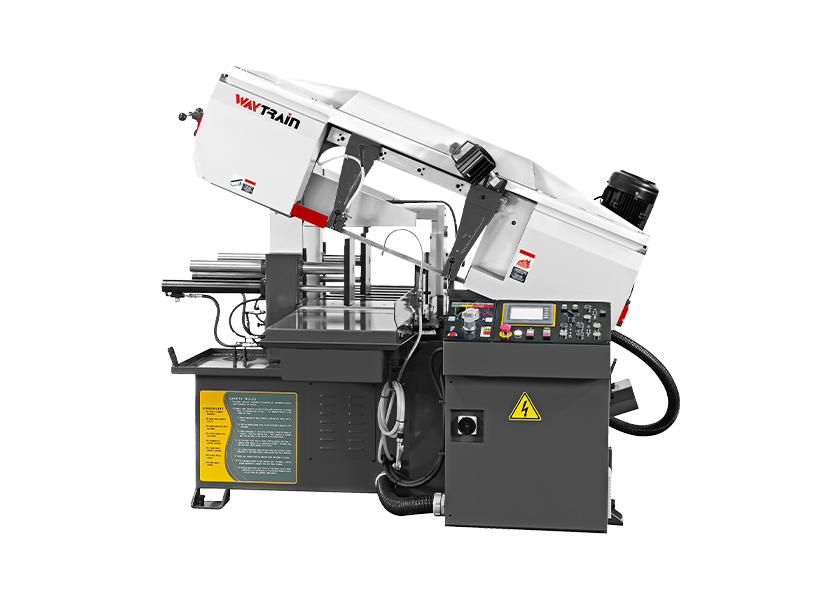

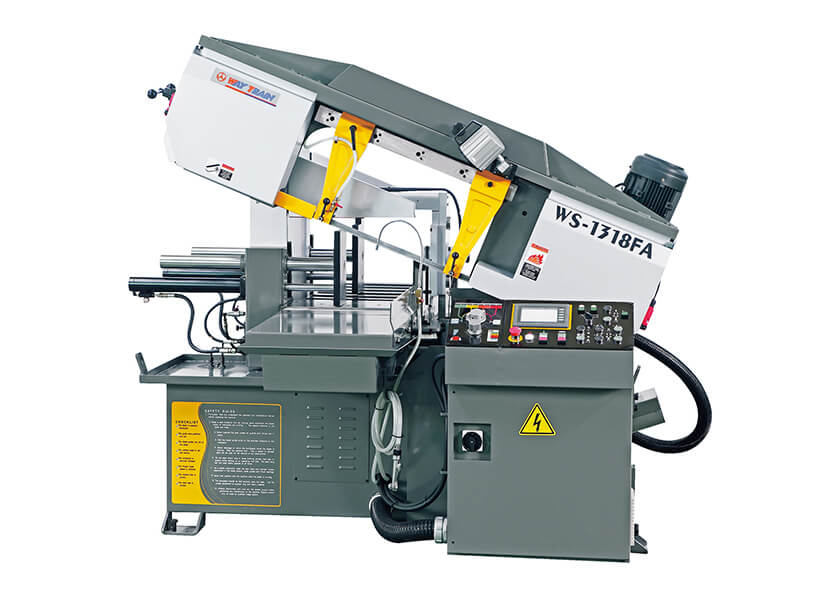

13" Fully Automatic Miter Cutting Band Saw

WS-1318FA
13" Fully Automatic Miter Cutting Band Saw
13" Fully Automatic Miter Cutting Band Saw
H 330 W 460
  • Swivel saw bow to get angle cutting (R45˚) by manual
  • Inverter controls blade speed
  • Human-machine interface control panel
  • Can save 10 cutting presets memory
  • Encoder controlled cutting length setting
  • Full stroke hydraulic vises
  • Vertical press vise for bundle cutting
  • Set bow height by manual
  • Vise pressure regulator
  • Blade tension gauge
  • Hydraulic automatic chip conveyor
  • Power driven wire brush
Specifications
Capacity 90° (H x W) 330 mm
330 x 380 mm
100 x 460 mm
 Capacity 45° (H x W)

280 mm
 200 x 330 mm
100 x 270 mm
Bundle Cutting(HxW) 300 x 410 mm Mini. Cut Off Length  Over 8 mm
Blade Size  27 x 0.9 x 4130 mm Blade Speed (60HZ)  30 ~ 85 mpm
Blade Motor 5 HP (3.74 kw) x 4P Hydraulic Motor  1/2 HP (0.38 kw)
Coolant Pump  1/8 HP (0.1 kw) Hydraulic Tank 22 L
Coolant Tank  80 L　　 Table Height  830 mm
Feeding Storke  700 mm Packing Size 2280 x 2190 x 1730 mm
N.W/G.W 1400 kg / 1668 kg
Accessories (optional)
LX-20G2
