13" Double Miter Cutting Band Saw - Semi-Auto
/RL-330DSAR.jpg)
/RL-330DSAR%E8%A7%92%E5%BA%A6%E8%BD%89%E7%9B%A4.png)
/RL-330DSAR%E6%8E%92%E5%B1%91%E6%A9%9F%E7%B5%84.jpg)
H 330
W 510
- Touchscreen angle setting(R/L60˚)，hydraulic auto swiveling saw bow-DSAR

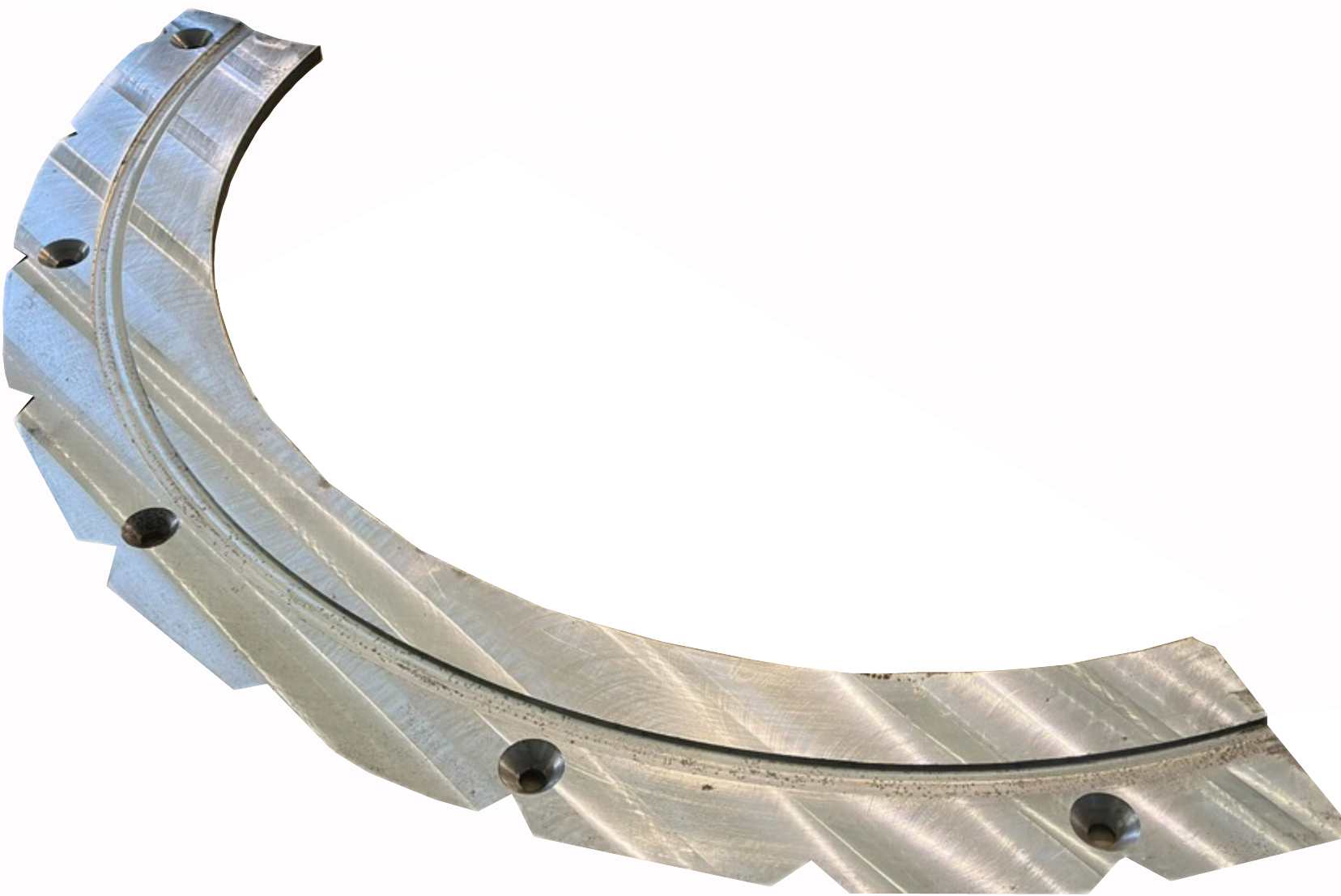

- 15° Mechanical Indexing Angle Setting(R/L60˚)，manual swiveling saw bow-DSAE
- Inverter controls blade speed，adjustment based on material type and thickness.
- Notifications of malfunction diagnosing on screen
- Linear guides are used on saw-bow to perform smooth movement
- Blade guide arm moves on linear guide and moves in sync with the movable vise
- The turntable uses tapered roller bearings for low friction, making manual rotation easy.
- Vise pressure regulator
- Power driven wire brush
- 2M feeding roller (Option)
- Machine guarding fence (Option)
- Hydraulic blade tension (Option)
- Hydraulic vertical press vise (Option)

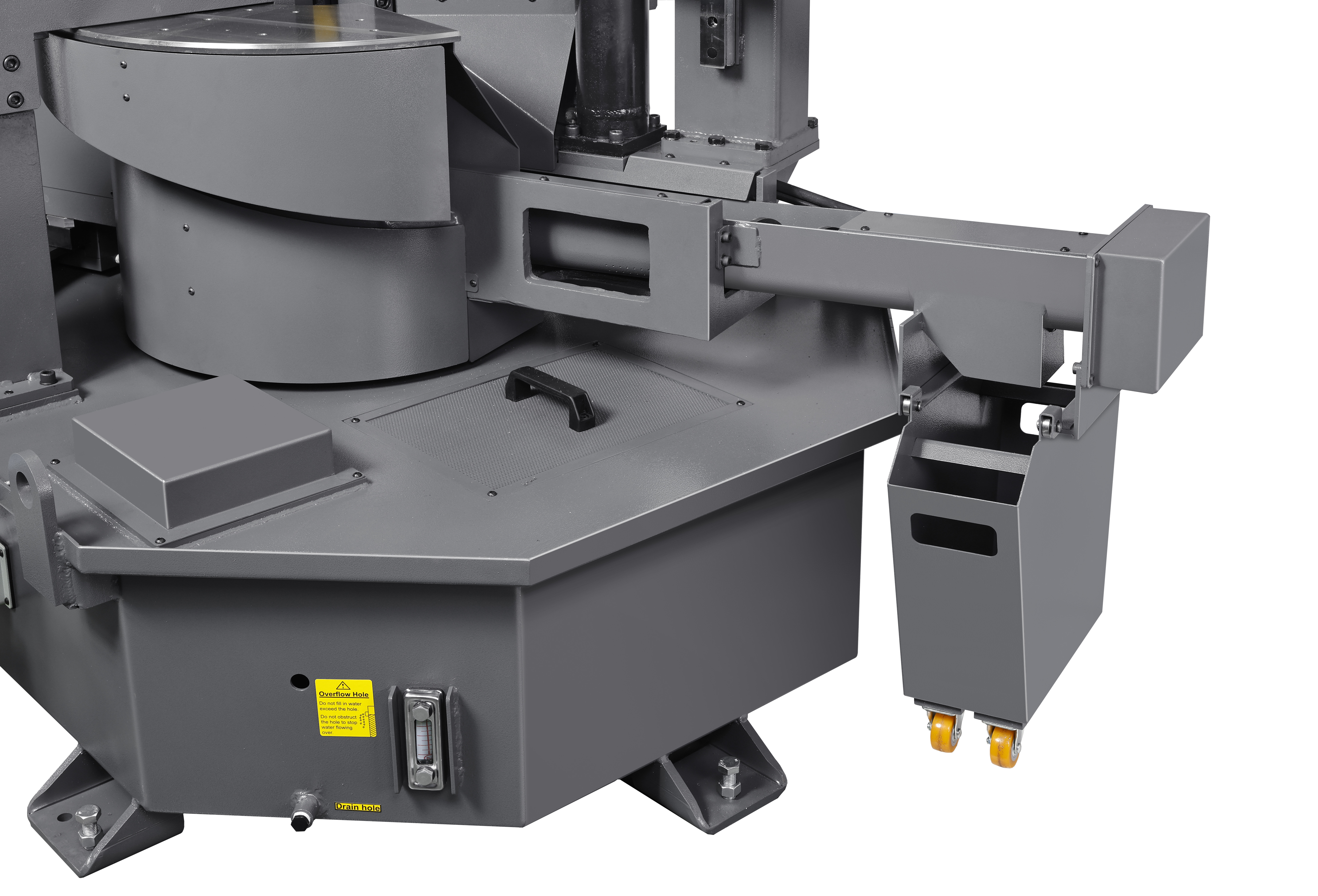

- Chip conveyor setting - Hydraulic automatic chip conveyor + Chip cart (Option)
| Capacity 90° (H x W) |
 330 mm 330 x 330 mm 330 x 510 mm |
Capacity 45°(R/L) (H x W) |
320 mm 320 x 320 mm 320 x 330 mm |
| Capacity 60°(R/L) (H x W) |
200 mm 200 x 200 mm 330 x 200 mm |
Blade Motor | 3 HP (2.5kw) |
| Hydraulic Pump | 1 HP (0.75kw) | Coolant Motor | 1/6 HP (0.12kw) |
| Blade Size | 34 x 1.1 x 5650 mm | Blade Speed | 30 ~ 100 mpm |
| Hydraulic Tank | 60 L | Coolant Tank | 80 L |
| Machine Size | 2750 x 1340 x 1800 mm | N.W./G.W. | 1769 kg (Without options) / 1900 kg (With options) |
| Table Height | 870 mm |
