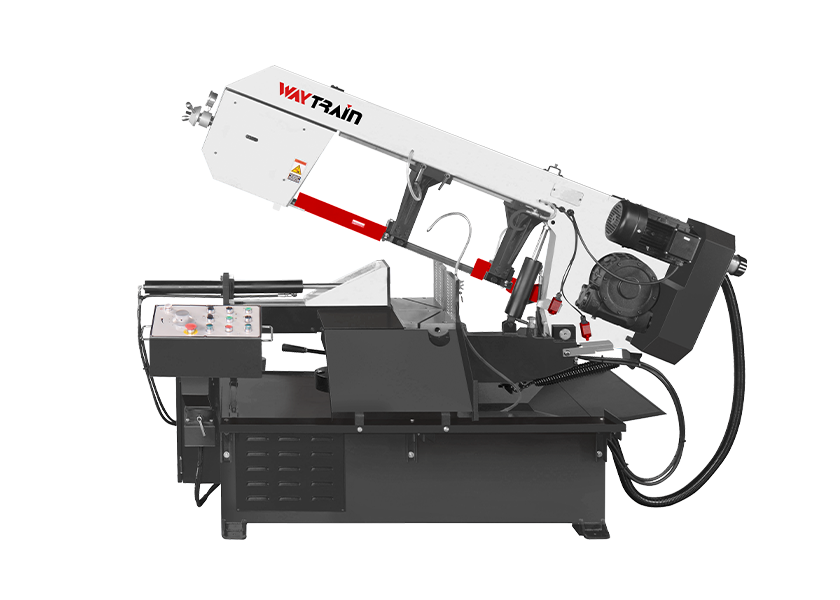

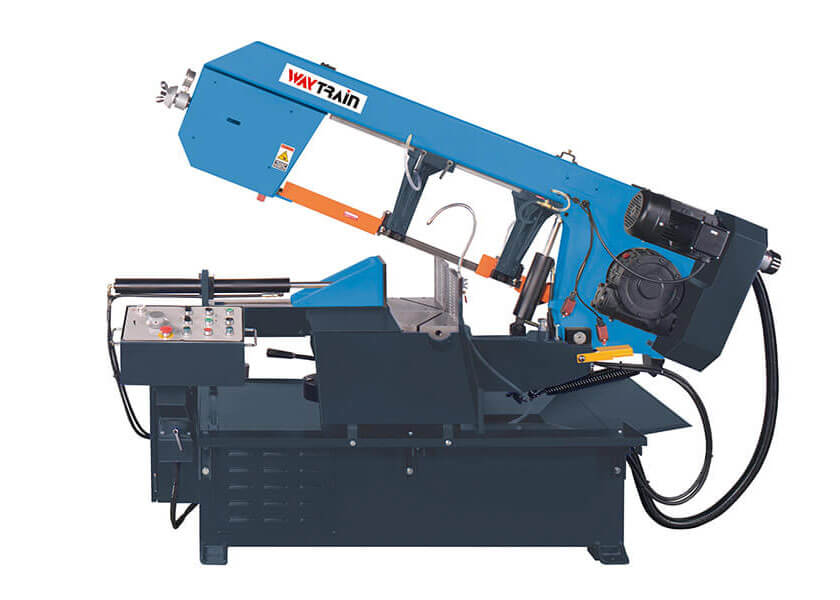

13" Double Miter Cutting Band Saw : UE-331DSAE | WAY TRAIN Band Saw Manufacturer

H 510 W 485

Swivel saw bow to get angle cutting (R/L 60˚) by manual
Variable speeds by manual
Blade speed readout
Set bow height by manual
Blade tension gauge
Motor driven chip brush
Swiveling control box
Angle readout(Option)
Vertical press vise(Option)
Vise pressure regulator(Option)
Laser cutting line devise(Option)

Specifications

Capacity 90° (H x W)	331 mm 320 x 485 mm 260 x 510 mm	Capacity 45°(R/L) (H x W)	315 mm 315 x 315 mm
Capacity 60°(R/L) (H x W)	215 mm 315 x 195 mm	Blade Motor	3HP (2.2kw) x 4P
Blade Size	34 x 1.1 x 4180 mm	Blade Speed	50HZ 26 ~ 80 mpm 60HZ 32 ~ 96 mpm
Hydraulic Tank	17 L	Coolant Tank	50 L
Packing Size	2310 x 1060 x 1550 mm	N.W/G.W	839 kg / 957 kg

Accessories (optional)
