UE-13

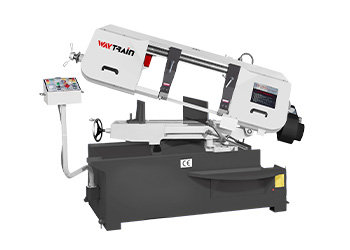

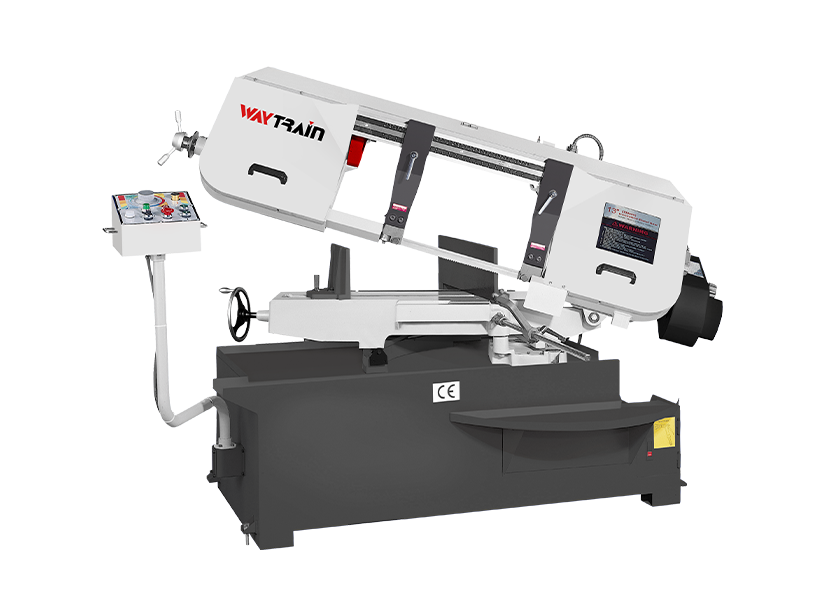

13" Semi-Automatic Horizontal Bandsaw
H 330
W 530
This semi-automatic horizontal band saw has a variable speed function that can adjust the speed of the saw blade according to different materials and cutting requirements, improving cutting efficiency and ensuring cutting quality. By swiveling the saw head, cutting at different angles can be achieved to meet the processing needs of different workpieces and improve production flexibility and versatility.
And semi-automatic horizontal band saw has a swiveling control box convenient for the operator to adjust the position of the control box as needed, improving operating comfort and accuracy.
Specifications
Capacity 90° (H x W) |
330 mm 330 x 480 mm 225 x 530 mm |
Capacity 45° (H x W) | 255 mm 255 x 280 mm |
Motor | 3HP | Blade Size | 34 x 1.1 x 4100 mm |
Blade Speed | 20 ~ 80 mpm | Container Loads | 7 sets / 20' 14 sets / 40' |
Packing Size | 2285 x 953 x 1500 mm | N.W./G.W. | 750 Kg / 860 Kg |
Accessories (optional)
