UE-460T1
18" Double Miter Bandsaw
H 460
W 600
- Swiveling control box
- Blade tension by manual
- Variable speeds by manual
- Angle cutting (R/L45˚ 60˚) by manual
- Set bow height by manual
- The sliding vise base can be moved quickly for the angle cutting
- The detachable retrieval table can be disassembled quickly and place on the two sides of sliding vice base for using
- Linear guide is used on the blade guide post movement to achieve accurate positioning and move smoothly
- Adjustable tension spring is used to balance pressure of saw frame movement and prolong blade life

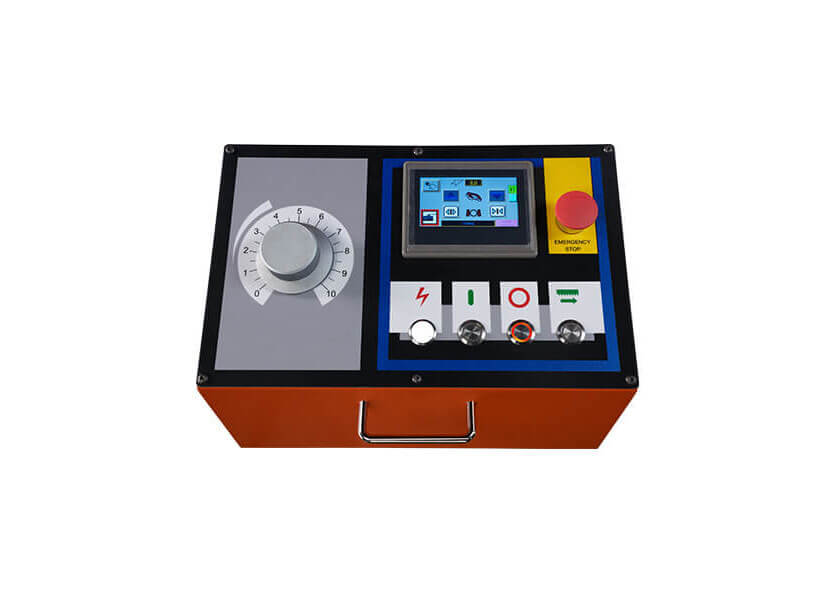

- HMI control panel advanced operation assistance systems, build-in 10 different error conditions and troubleshooting on screen
- Vise pressure regulator(DSAEP Option)
- Hydraulic blade tension(Option)
- Hydraulic vertical press vise(Option)
Specifications
| Capacity 90° (H x W) |  460 mm 460 x 460 mm 440 x 600 mm |
Capacity 45°(R/L) (H x W) | 445 mm 400 x 400 mm 460 x 400 mm |
| Capacity 60°(R/L) (H x W) | 295 mm 295 x 295 mm 460 x 250 mm |
Blade Motor | 5 HP (3.7kw) x 4P |
| Hydraulic Motor | 1 HP (0.75kw) | Blade Size | 41 x 1.3 x 5600 mm |
| Blade Speed | 32 ~ 96 mpm | Hydraulic Tank | 30 L |
| Coolant Tank | 75 L | Packing Size | 2920 x 1135 x 1900 mm |
| N.W/G.W | 1460 kg / 1590kg |
Accessories (optional)
Added to your inquiry

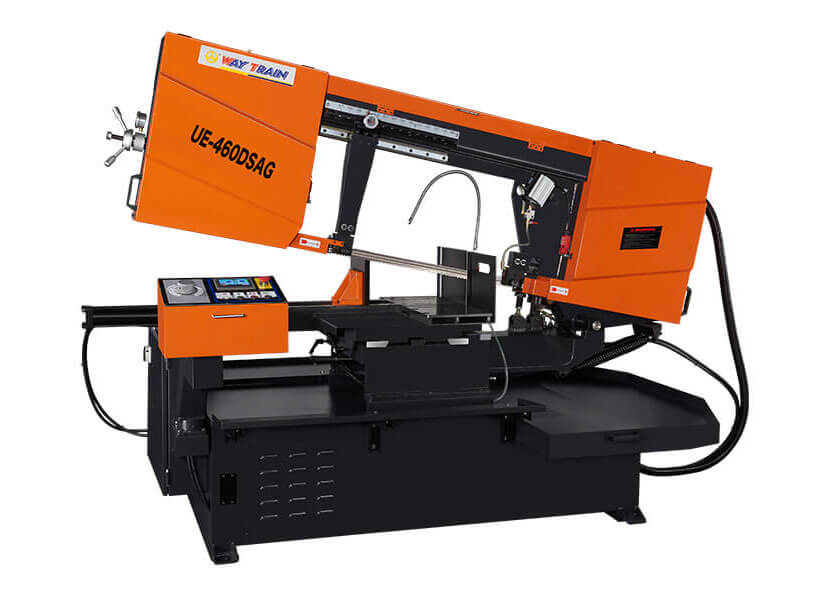

UE-460DSAG
