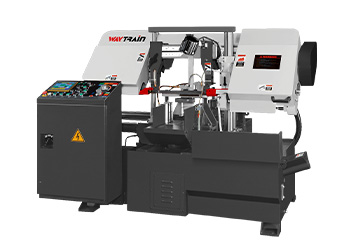

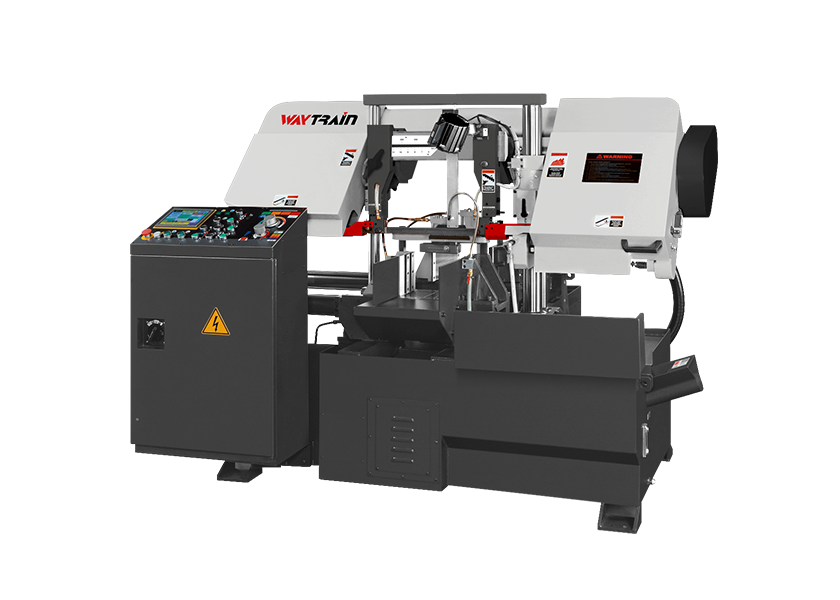

LX-20G2
12" Automatic Band Saw
H 300 W 300
- Power driven wire brush
- Human-machine interface control panel
- Hydraulic blade tension
- Hydraulic automatic chip conveyor
- Hydraulic carbide blade guide
- Full stroke hydraulic vises
- Inverter controls blade speed
- Rotary encoder measure feeding length
- Can save 10 cutting presets memory
- Vise pressure regulator(option)
- Hydraulic vertical press device(option)
Specifications
Capacity (H x W) | 300 mm 300 mm |
Bundle Cutting (H x W) | 145~230 x 30~130 mm |
Minimum No Material Detecting | 32 mm | Blade Size | 34 x 1.1 x 3920 mm |
Blade Speed | 30~85 mpm | Blade Motor | 5HP (3.75 kW) |
Hydraulic Motor | 1 HP (0.75 kW) | Coolant Pump | 1/6 HP (0.125 kW) |
Hydraulic Tank | 35 L | Coolant Tank | 90 L |
Cut off Length | Over 10 mm | Feeding Stroke | 400 mm |
Table Height | 755 mm | Minimum Residual Work Length | 100 mm |
Packing Size | 2270 x 2220 x 1820 mm | N.W./G.W. | 1560 kg / 1765 kg |
Accessories (optional)
