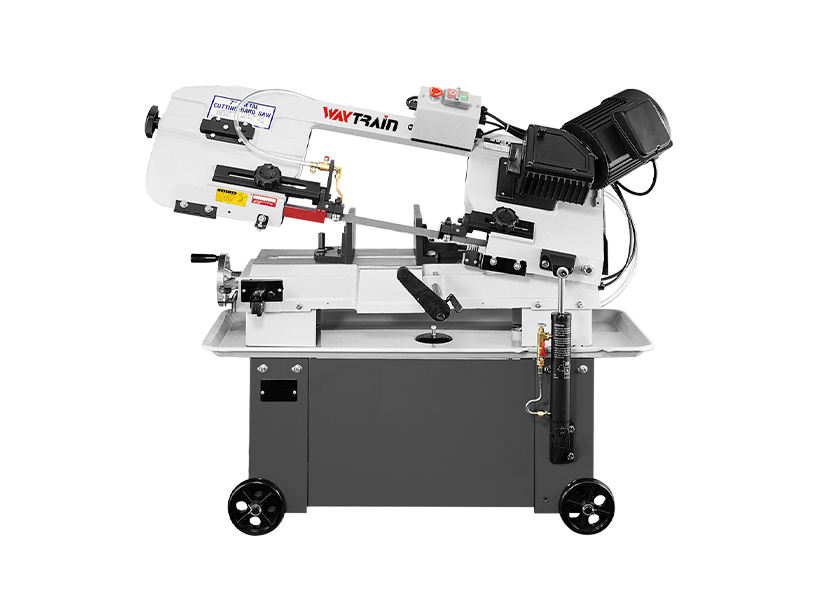

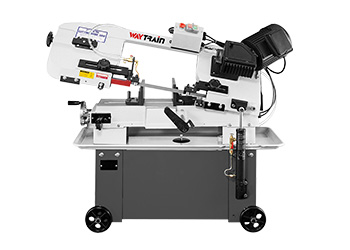

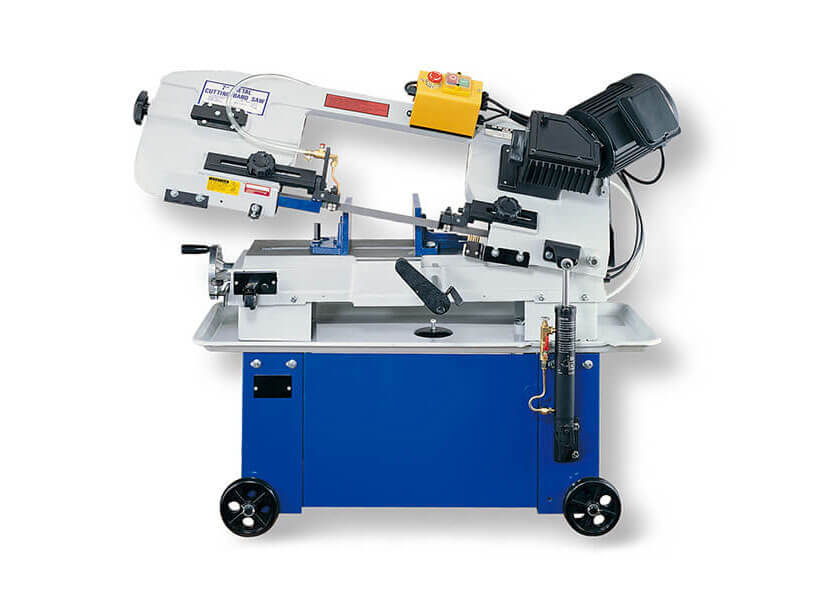

7" Industrial Horizontal Metal Cutting Band Saw

UE-712G
7" Industrial Horizontal Metal Cutting Band Saw
7" Industrial Horizontal Metal Cutting Band Saw
H 180 W 300
  • Angle cutting by swiveling vise
  • Gear transmission
  • Bow down control by cylinder
  • Equipped with wheels‚the user can move the machine easily to process the cutting job
Specifications
Capacity 90° (H x W) 180 mm
180 x 270 mm
65 x 300 mm		 Capacity 45° (H x W) 110 mm
180 x 85 mm
140 x 110 mm
Motor 1 HP Blade Size 19 x 0.9 x 2360 mm
Blade Speed (3 Speeds) 39 / 66 / 82 mpm Container Loads 42 sets/20’
88 sets/40’
Packing Size 1288 x 457 x 1067 mm N.W./G.W. 130 Kg / 150 Kg
Specifications and external appearance are subject to change without notice
Accessories (optional)
UE-9L
