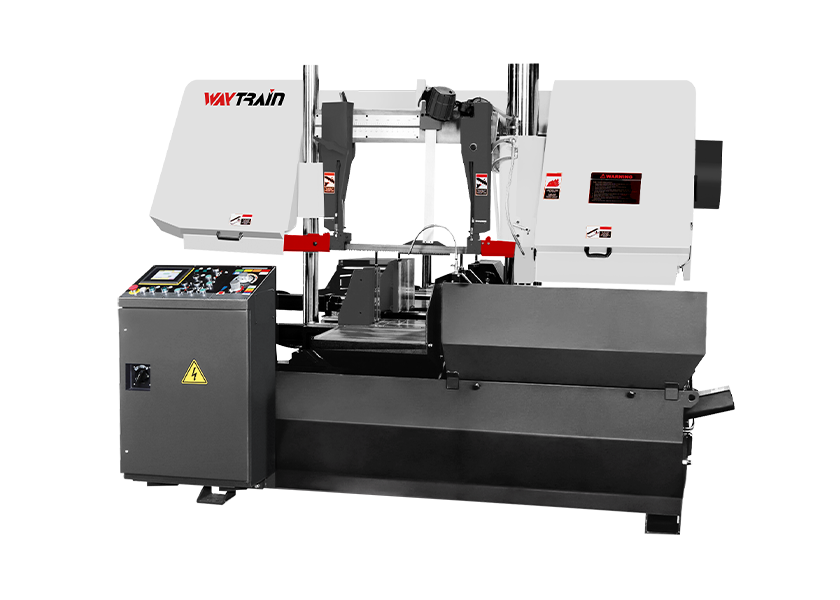

LX-46G2
22" Fully Automatic Double Column Band Saw Machine
H 560
W 600
- Inverter controls blade speed
- Human-machine interface control panel
- Can save 10 cutting presets memory
- Encoder controlled cutting length setting
- Full stroke hydraulic vises
- Hydraulic blade tension
- Hydraulic automatic chip conveyor
- Hydraulic carbide blade guide
- Power driven wire brush
- Vise pressure regulator(option)
- Blade deviation detector device(option)
With intelligent management and an optimized HMI interface, users can operate the machine more intuitively without worrying about complex settings.
The system includes automatic notifications for 12 types of abnormal conditions, providing instant alerts and guidance.
This greatly enhances convenience, efficiency, and overall user experience.
Specifications
| Capacity (H x W) |
 560 mm 560 x 600 mm |
Bundle Cutting (W x H) | 350 ~ 500 x 155 ~ 310 mm |
| Minimum No Material Detecting | 110 mm | Blade Size | 54 x 1.6 x 6600 mm |
| Blade Speed | 30 ~ 85 mpm | Blade Motor | 10 HP (7.5kW) |
| Hydraulic Motor | 3 HP (2.2kW) | Coolant Pump | 1/4 HP (0.2kW) |
| Hydraulic Tank | 65 L | Coolant Tank | 170 L |
| Cut off Length | Over 10 mm | Feeding Stroke | 400 mm |
| Table Height | 810 mm | Minimum Residual Work Length | 120 mm |
| Packing Size | 3340 x 2310 x 2250 mm | N.W./G.W. | 4110 kg / 4450 kg |
Accessories (optional)
Added to your inquiry

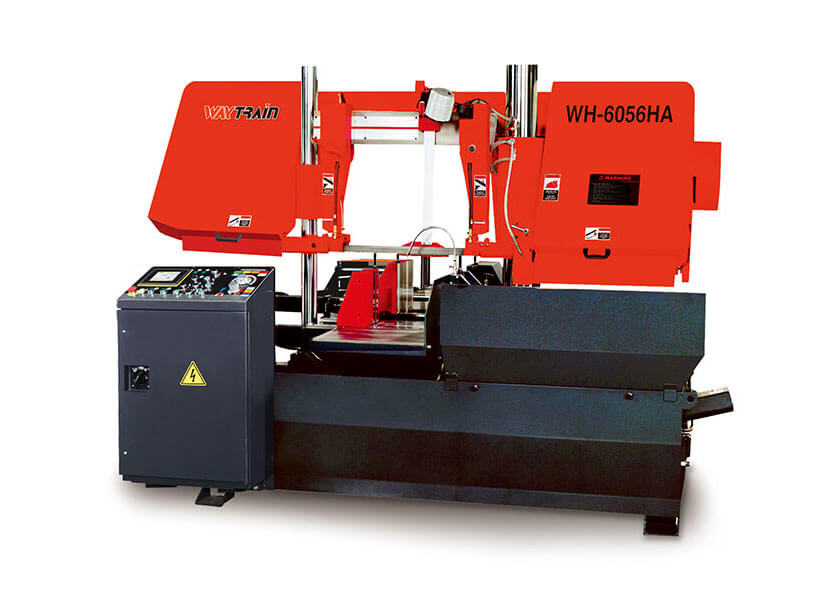

WH-6056HA
