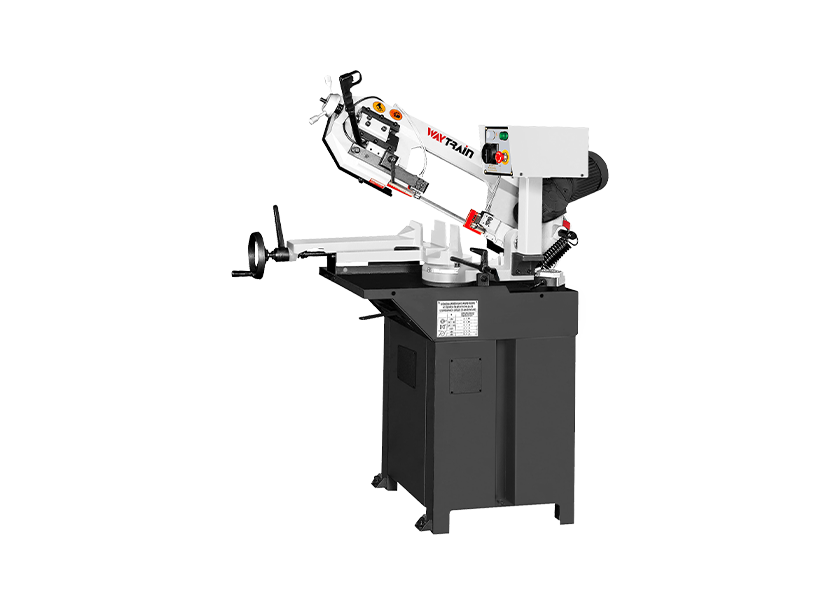

WE-33T1
7" European Manual Band Saw
/WE-210S-SH-SHV.jpg)
H 170 W 210
- Swivel saw bow to get angle cutting (R60˚)
- Two Blade speeds selection for optimal adjustment to the workpiece (SH)
- Inverter controls variable blade speed for accuracy cutting speed(SHV)
- Manual vise clamping with quick adjustment
- Good for cutting of profiles, pipes, solid iron and non-iron materials
- Strong rigidity design of cast iron saw frame for cutting smooth and vibration-free running
- Down-feed of saw frame by hydraulic cylinder
- Adjustable tension keeps the suitable tension for extending the blade life and cutting efficiency
- Tungsten steel carbide blade guide provides stable hold on the blade
- Blade guide post is used on smooth movement and improve the abrasion resistance
- Adjustable screws for blade wheel runout
Specifications
| Capacity 90° (H x W) |  170 mm 170 mm 100 x 210 mm |
Capacity 45° (H x W) | 120 mm 110 mm 60 x 130 mm |
| Capacity 60° (H x W) | 70 mm 60 mm 65 x 70 mm |
Blade Size | 20 x 0.9 x 2110 mm |
| Blade Speed 2 Speeds | 50HZ 4P 80 m/min;8P 40 m/min | Blade Speed Inverter | 20 ~ 85 mpm |
| Blade Motor | 1 HP (0.75 kw) | Coolant Motor | 32 W |
| Container Loads | 40 units / 20';84 units / 40' | Packing Size | 1160 x 580 x 850 mm |
| N.W./G.W. | 156 kg / 170 kg |
