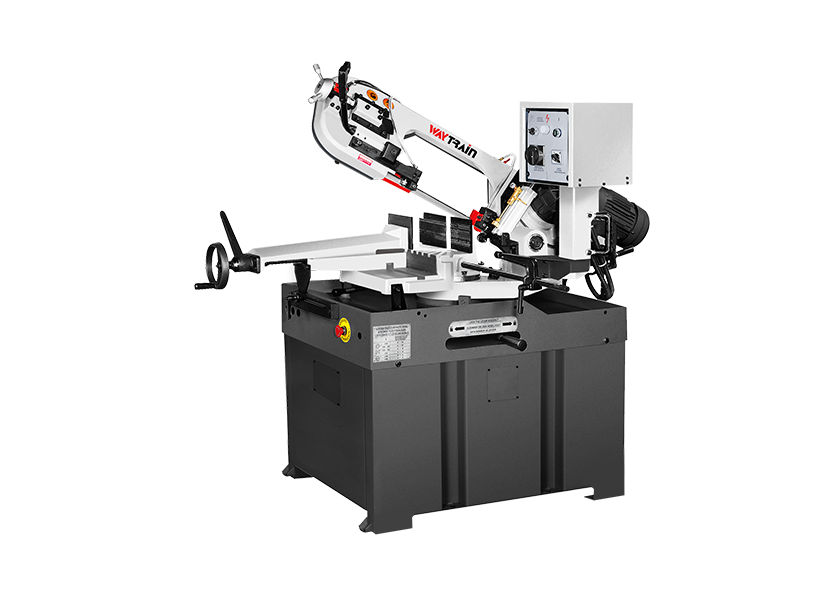

8" European Manual Band Saw | Way Train Band Sawing Machine

H 220 W 260

Angle cutting (R/L45˚ R60˚)
Blade broken detection
Blade tension indicator
Manual vise clamping
Two Blade speeds selection (DS)
Inverter controls variable blade speed (DSV)

Specifications

Capacity 90° (H x W)	220 mm 215 mm 105 x 260 mm	Capacity 45° (H x W)	150 mm 145 mm 70 x 155 mm
Capacity 60° (H x W)	90 mm 85 mm 85 x 90 mm	Capacity 45° (L)(H x W)	135 mm 110 mm 45 x 160 mm
Blade Size	27 x 0.9 x 2460 mm	Blade Speed 2 Speeds	50HZ 4P 72 m/min;8P 36 m/min
Blade Motor	1.5 HP (1.1 kw)	Blade Speed Inverter	20 ~ 85 mpm
Container Loads	22 units / 20' ; 46 units / 40'	Coolant Motor	32 W
N.W./G.W.	278 kg / 310 kg	Packing Size	1550 x 750 x 1055 mm

Accessories (optional)
