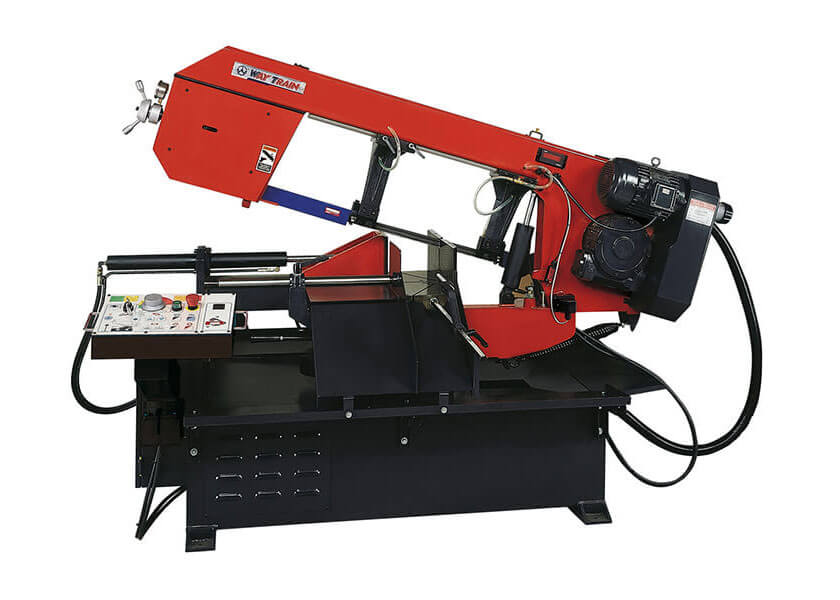

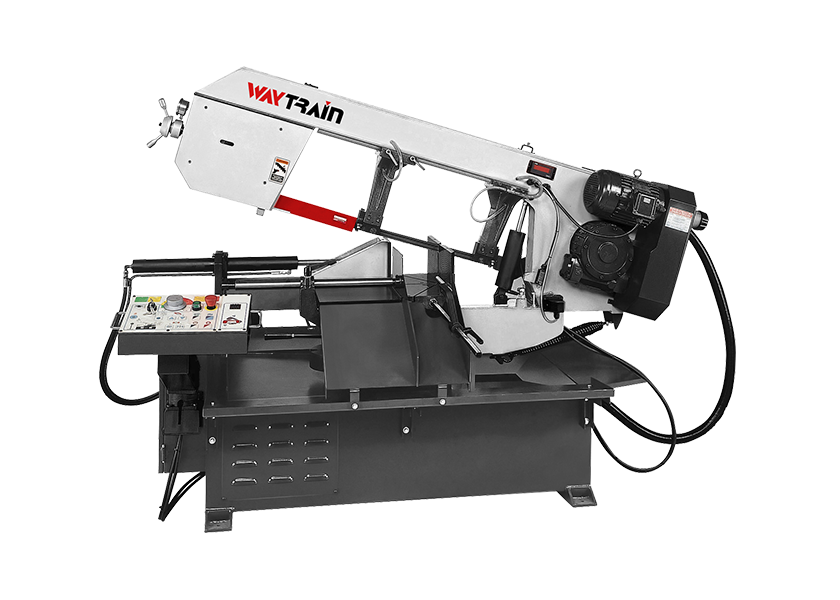

13" Dual Miter Band Saw | Way Train Band Sawing Machine

H 510 W 485

Swiveling control box
Blade tension by manual
Variable speeds by manual
Angle cutting (R/L45˚ R/L 60˚) by manual
Blade speed readout
Blade wheel driven chip brush
Abnormal warning lights
Set bow height by manual(DSAE)
Set bow height on control panel(DSA)
Hydraulic vertical press vise(Option)
Laser cutting line devise(Option)
Vise pressure regulator(DSAE Option)

Specifications

Capacity 90° (H x W)	331 mm 320 x 485 mm 260 x 510 mm	Capacity 45°(R/L) (H x W)	315 mm 315 x 315 mm
Capacity 60°(R/L) (H x W)	215 mm 315 x 195 mm	Blade Motor	3HP (2.2kw) x 4P
Blade Size	34 x 1.1 x 4180 mm	Blade Speed	50HZ 26 ~ 80 mpm 60HZ 32 ~ 96 mpm
Hydraulic Tank	17 L	Coolant Tank	50 L
Packing Size	2310 x 1060 x 1550 mm	N.W/G.W	850 kg / 965 kg

Accessories (optional)
