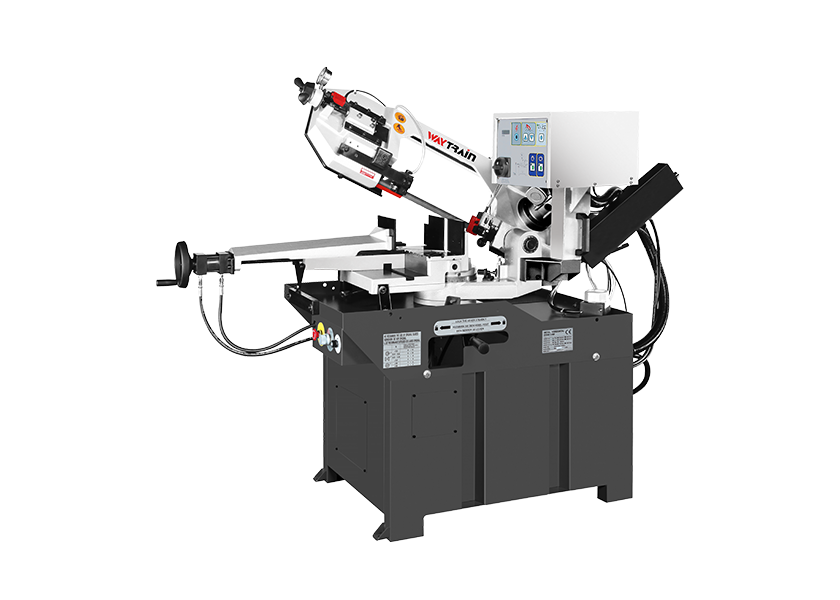

8 Inch European Band Saw

WE-275DSA/DSAV
H 220 W 260
  • Angle cutting (R/L45˚ R60˚)
  • Blade broken detection
  • Blade tension indicator
  • Hydraulic vise clamping
  • Hydraulic cylinder controls lift of saw baw
  • Two Blade speeds selection (DSA)
  • Inverter controls variable blade speed (DSAV)
Specifications
Capacity 90° (H x W) 220 mm
215 mm
105 x 260 mm
Capacity 45° (H x W) 150 mm
145 mm
70 x 155 mm
Capacity 60° (H x W) 90 mm
85 mm
85 x 90 mm
Capacity 45°(L) (H x W) 135 mm
110 mm
45 x 160 mm
Blade Size  27 x 0.9 x 2725 mm Blade Speed 2 Speeds 50HZ   4P  72 m/min ;8P  36 m/min
Blade Speed Inverter 20 ~ 85 mpm Blade Motor  1.5 HP (1.1 kw)
Hydraulic Motor 1 / 2  HP (0.38kw) Coolant Motor 32 W
Container Loads 10 units / 20'  ;20 units / 40' Packing Size 1580 x 750 x 1600 mm
N.W./G.W.  355 kg / 410 kg
