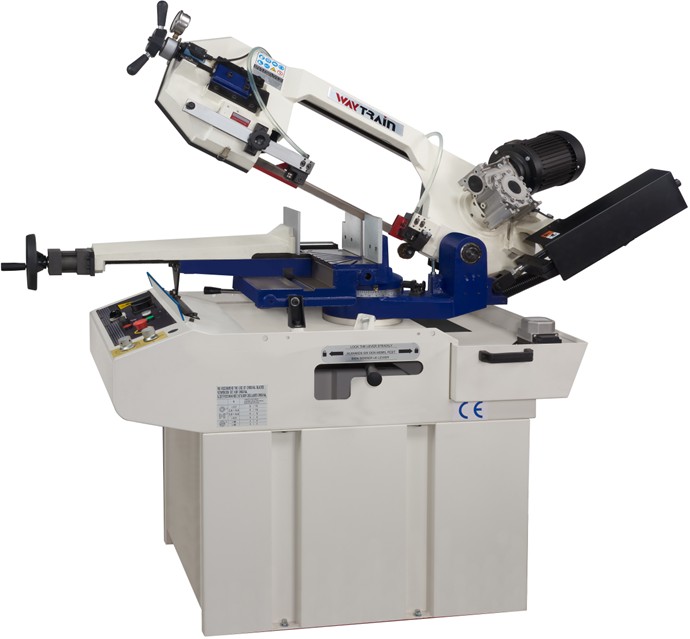

11'' Semi-Auto European Band Saw
/WK-285DSA.jpg)
H 250 W 285
- Swivel saw bow to get angle cutting (R60˚ L45˚)
- Two Blade speeds selection
- The dovetail working table is smooth movement for sliding vise base
- Hydraulic vise clamping
- Mobile coolant tray is convenient for catchment during the angle cutting
- Blade broken detection
- Blade tension gauge
| Capacity 90° (H x W) |
 250 mm 250 mm 240 x 285 mm |
Capacity 45° (H x W) |
190 mm 180 mm 140 x 190 mm |
||
| Capacity 60° (H x W) |
120 mm 100 mm 100 x 120 mm |
Capacity 45°(L) (H x W) |
180 mm 150 mm 50 x 200 mm |
||
| Blade Size | 27 x 0.9 x 2685 mm | Blade Speed 2 Speeds | 50HZ 4P 72 m/min ; 8P 36 m/min | ||
| Blade Motor | 1.5 HP (1.1 kw) | Hydraulic Motor | 1 / 2 HP (0.38kw) | ||
| Coolant Motor | 32 W | Container Loads | 10 units / 20';20 units / 40' | ||
| Packing Size | 1720 x 750 x 1580 mm |
N.W./G.W. | 365 kg / 435 kg |
